SPECIFICATIONS

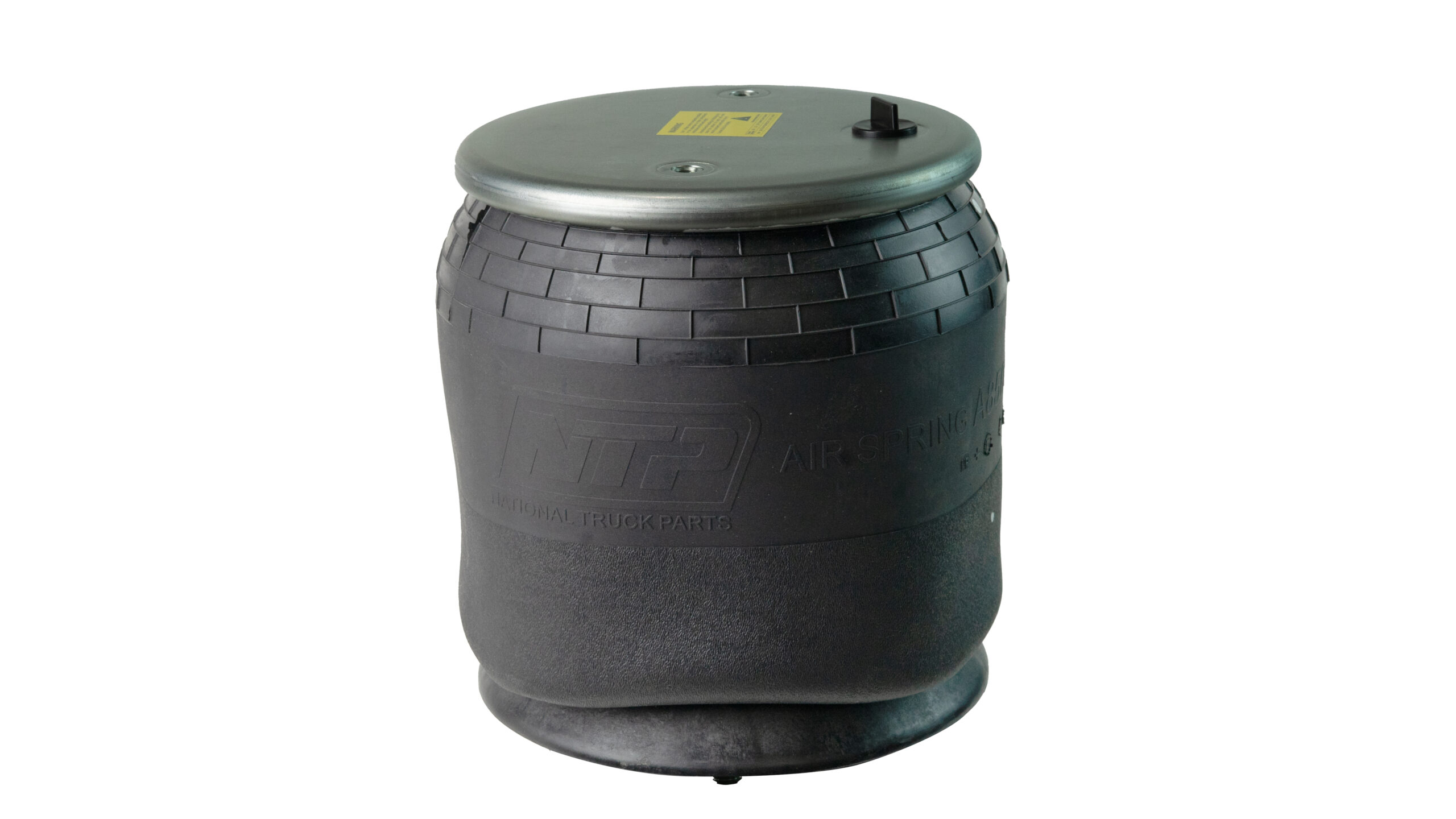

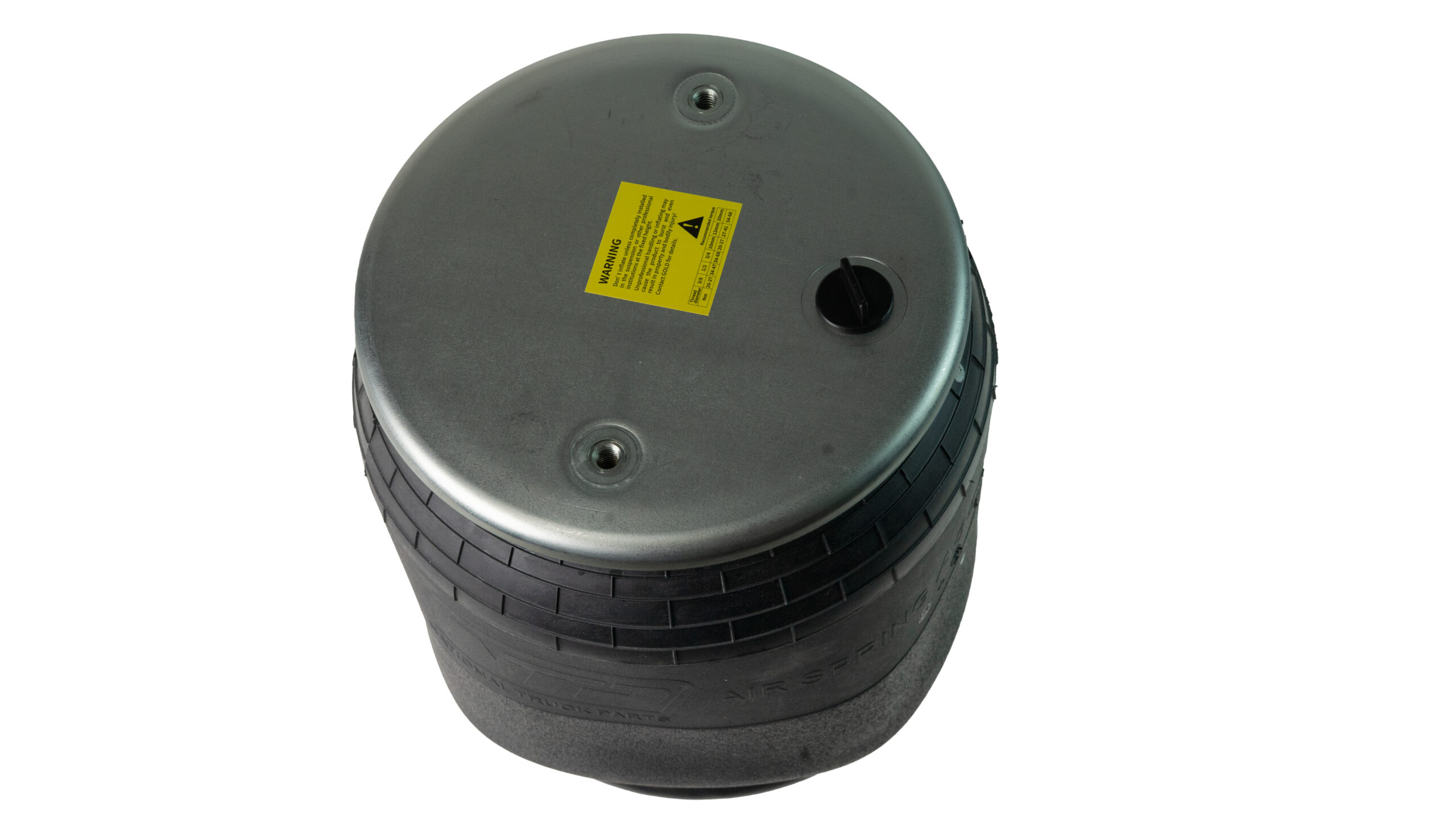

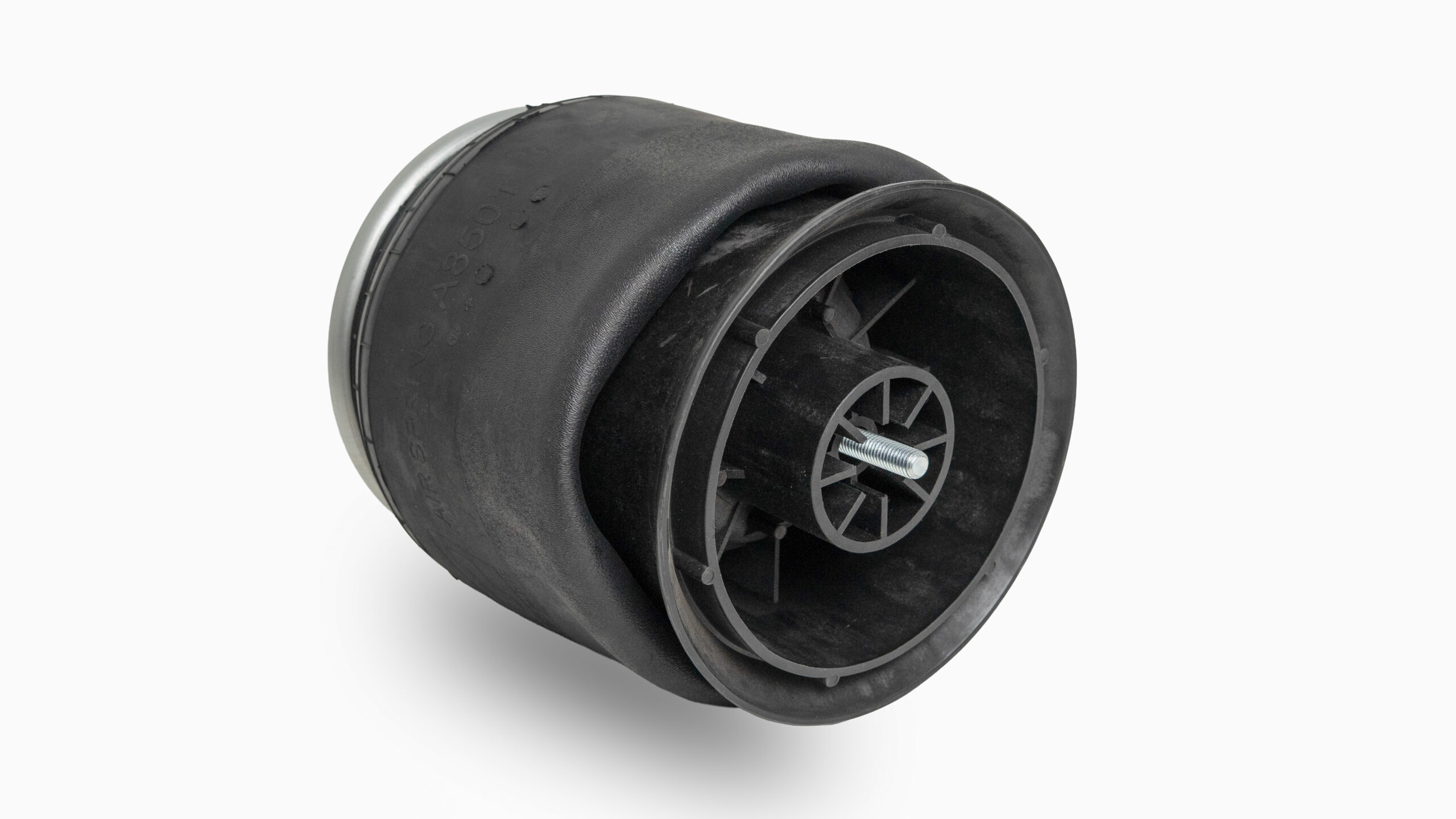

| Description | Suspension Air Spring – 7.50 in. Compressed Height for Peterbilt Trucks |
|---|---|
| Cross Reference | ALLIANCE: ABP N32 019069 CONTITECH: 9 10-14 P 312 / 161020 / 64274 / 91014P312 / 910-14P312 / 910-14 P 312 DAYTON: 352-9069 FIRESTONE: W01-358-9069 / 9069 / W013589069 / W017038808 / W01-703-8808 / W017038923 / W01-703-8923 / W01-358-8813 GOODYEAR: 1R12-069 / 1R12069 / 1R121069 / 1R12-1069 / 1R12-676 HENDRICKSON: S13031 / S-13031 / 513031 IHC / NAVISTAR: 554764C1 / 554764Cl (possible duplicate with different case) LOAD GUARD / LOADGUARD: 5C2034 / SC2034 NEWAY: G2299069200 / 57009069 PETERBILT: 0301649 / 03-01649 / 0302038 / 03-02038 / 0302456 / 03-02456 / 0304759 / 03-04759 / 0306746 / 03-06746 / 0307112 / 03-07112 / 0310042 / 03-10042 / 2310042 / 23-10042 / C816022 / C81-6022 / 2456 / 4759 / 6746 TRIANGLE: 8312 VOLVO / VOLVO-WHITE: 85101145 WATSON AND CHALIN: AS-0077 / AS0077 |
| Dimensions | Extended Height: 18.00″ Compressed Height: 7.50″ Top Plate Width: 9.00″ Piston Width: 9.50″ Weight: 13.4 lbs |
| Application | Peterbilt |
| Material | Rubber, Metal, Plastic |
| Warranty | 1 Year |
